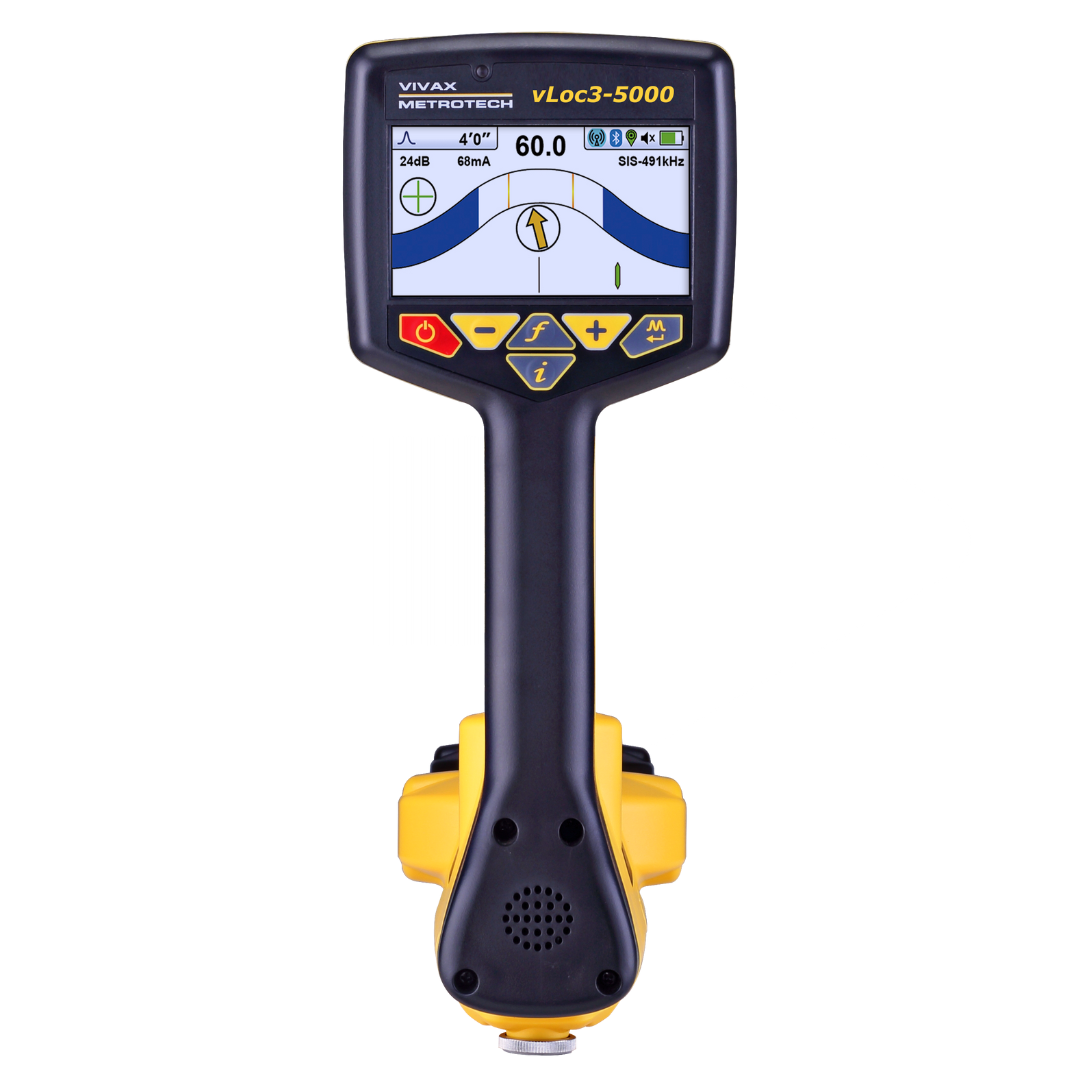

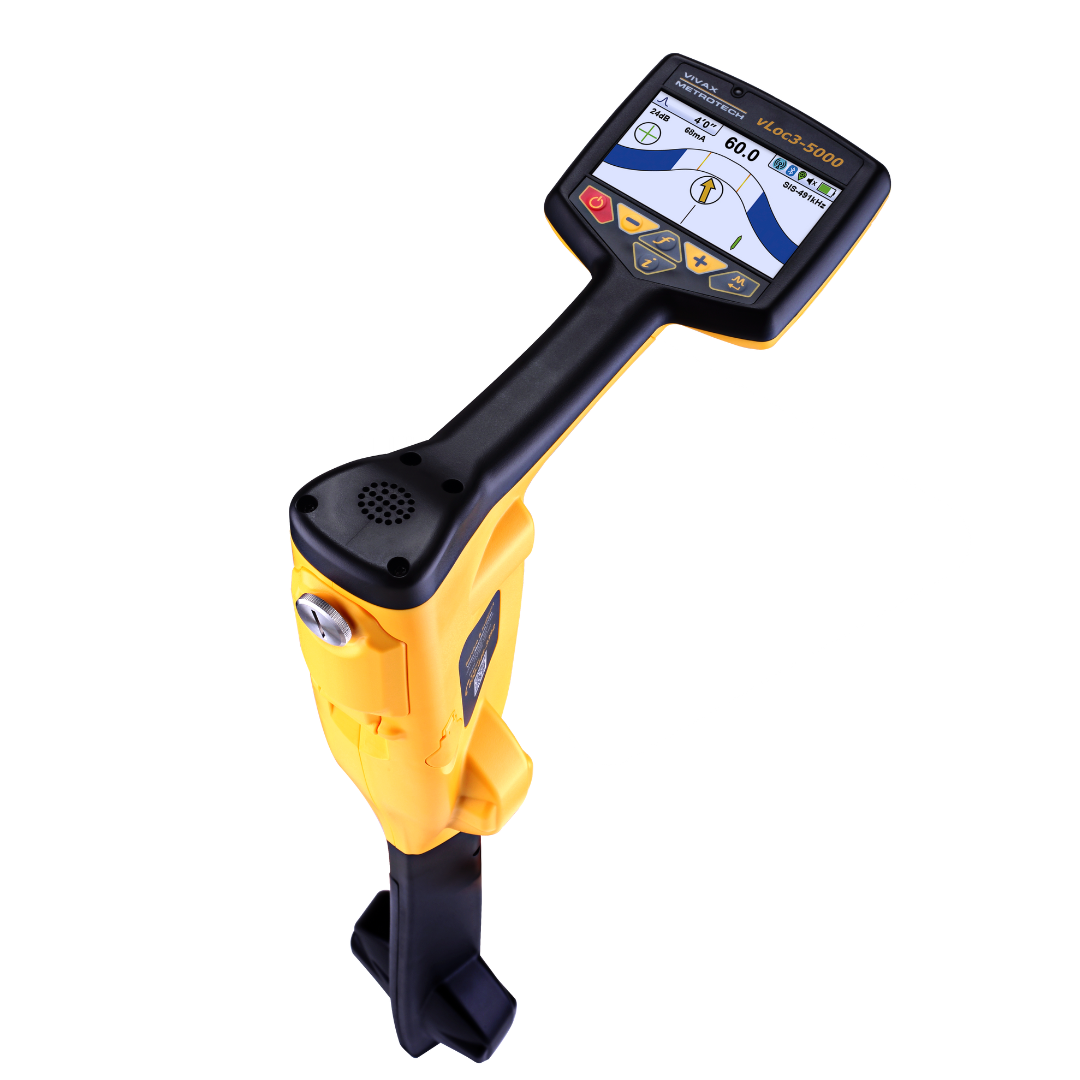

vLoc3-5000 Cable Locator

The vLoc3-5000 utility locator sets a new standard in buried utility detection with advanced digital signal processing, broadband frequency selection, and GPS-enabled mapping. Whether using its internal GPS or connecting via Bluetooth to an external GPS, the device seamlessly captures location data for integration with GIS systems or Google Maps.

Pair it with the free VM-MAP mobile app to build real-time maps enriched with details like depth of cover, line current, time, date, and custom notes—perfect for professional documentation and reporting.

Equipped with dual 3D antenna arrays, the vLoc3-5000 easily detects signal distortion and displays it clearly on a high-visibility, full-colour screen. Innovative locate modes include:

• Vector Locate for walk-free utility tracing

• Transverse Graph for peak and null analysis

• Plan View for cable orientation visualization

• Graphical Sonde View with real-time directional guidance

Designed for versatility, this highly configurable locator supports eight passive modes, fault-finding, Signal Select™, and SD mode for signal direction detection. Frequencies range from 98Hz to 200kHz, with user-defined alerts for shallow depth, overload, overhead lines, and more.

The paired Loc3-10SiSTx 10-watt transmitter delivers full broadband support, featuring SD mode, fault-finding, true resistance measurement up to 1 MΩ, and support for advanced line ID features when used with the vLoc3-5000.

• Internal Bluetooth and GPS
• Digital signal processing in receiver and transmitter
• Sheath to earth fault locating (with A-frame accessory)
• Distortion Alert assist in recognizing signal bleed-over
• Offset vector locate mode
• Cloud-based data warehousing

vLoc3-5000-Sales-Sheet-VXMT-UK-V1.4-A4-20230215
